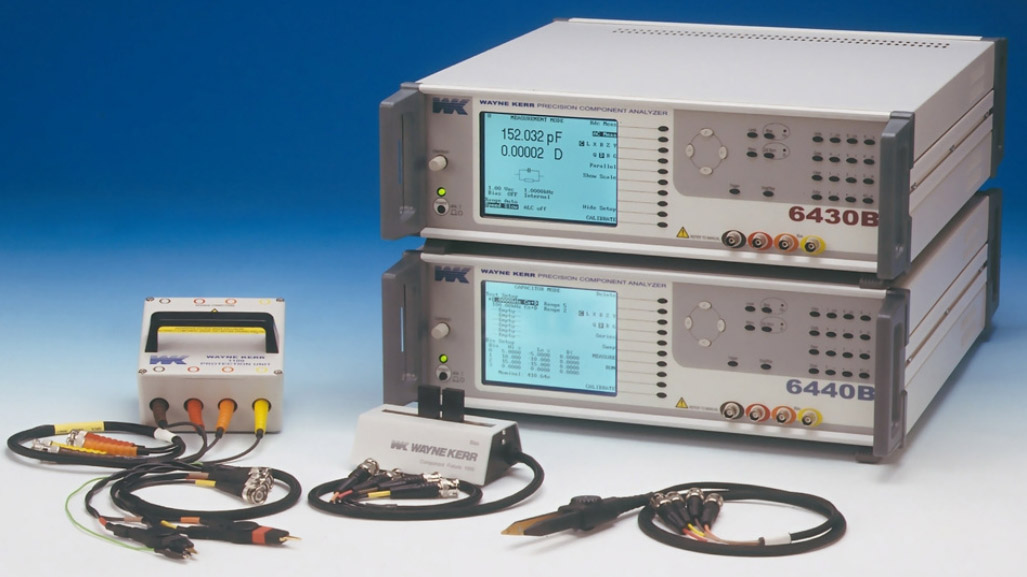

The 6430B and 6440B Precision Component Analyzers provide thorough and accurate testing of any passive component to high resolution. In particular, for capacitor manufacturers, the instruments provide capabilities for both fast automatic production testing and complete design characterisation. Users include designers of passive components, manufacturing test, designing and testing materials as well as circuit designers who are evaluating component characteristics.

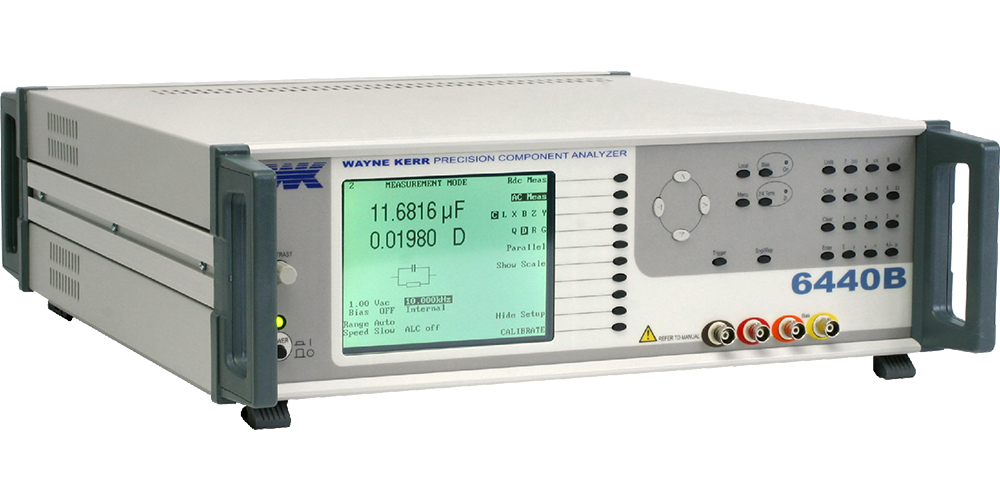

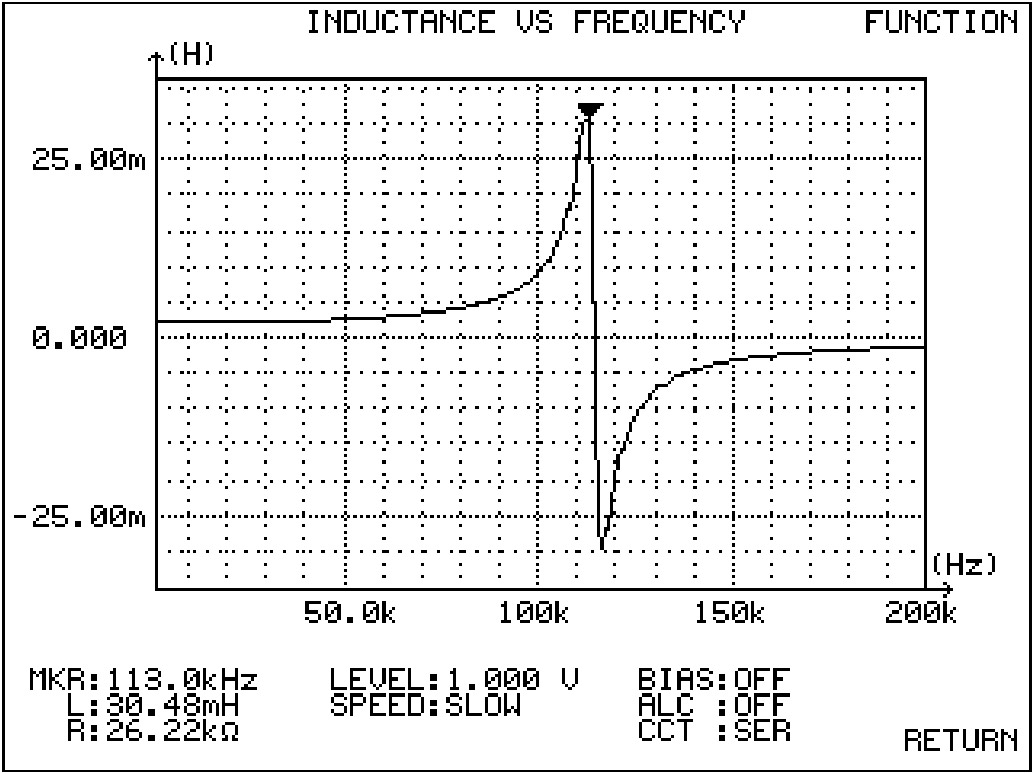

The resonant frequency can be automatically calculated for any component together with its equivalent series or parallel circuit at that frequency. Both instruments are designed for high performance testing of components, with a basic accuracy of 0.02%, at a low price. 6430B is the entry level instrument covering to 500 kHz whilst the fully featured 6440B covers to 3 MHz.
To evaluate a component performance at high speed over a specified range of frequencies, multi frequency mode is used. In this mode the operator decides which parameter is to be measured and at what frequencies. The 6430B and 6440B does the rest, creating an easy to read table on the large LCD display. Each test can have a simple Pass/Fail display.
The 6430B and 6440B deliver fast automatic testing of capacitors in a production environment. The user is able to select measurements from any of the instruments range and perform up to eight different tests on each component. Tolerance bins can be selected for each of the tests. The instrument selects the overall bin after completing all the tests. The measured results can be output over the GPIB or to a printer. The test sequence is triggered by external input, GPIB or the front panel. Once the test sequence is complete the bin is selected and the measured data is made available on the GPIB. This process takes place at very high speed allowing a dual frequency test to be completed in approximately 180 ms. Pass/Fail data in statistical form is available to the user and can be viewed on the LCD display, printed to a local printer or exported over the GPIB.
High precision measuring instruments can be sensitive to charged capacitors and if connected can lead to costly repairs and unacceptable downtime. Wayne Kerr Electronics have identified this problem and developed a solution that protects the test equipment from charged capacitors. In this event, the protection unit blows fuses, which can be easily and cheaply replaced, whilst the test equipment remains unharmed and continues to provide reliable accurate performance. The protection unit will protect the test equipment from up to 25 Joules of charged energy.
Overload Protection Unit 1J1100

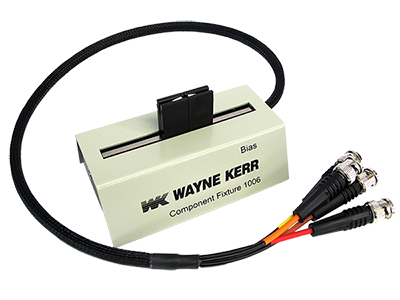

4 Terminal component fixture, Remote test fixture for axial, radial or bandoliered components. Complete with cable terminating in four BNC connectors

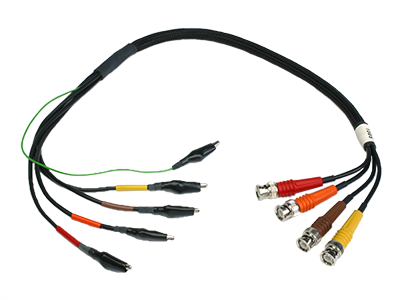

4 Terminal Lead, 600 mm extension cable terminated with four BNC connectors at the instrument end and four individual crocodile clips at the component end.

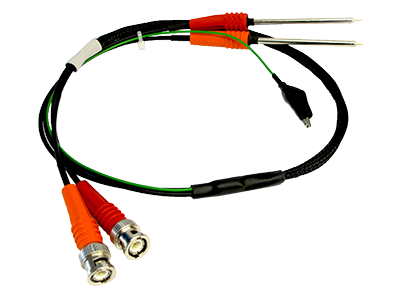

SMD probe leads, The 1905A ead with two sprung needle probes is used to access surface mounted devices on circuit boards and for interfacing to hybrid components and chip components on tape.

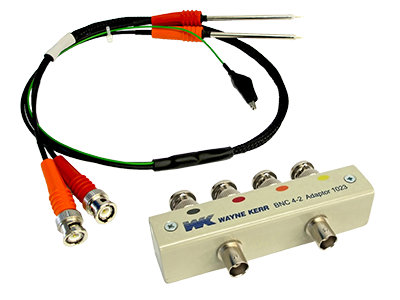

SMD probe leads with 1023, The 1905X is a 4-2 BNC converter plus lead with two sprung needle probes to access surface mounted devices on circuit boards and for interfacing to hybrid components and chip components on tape.
Kelvin Clips (fine jaw), Wayne Kerr Kelvin Clips consist of a 0.6 m cable assembly terminated with four BNC connectors at the analyzer end and a pair of 4-terminal Kelvin clips at the Device Under Test end.

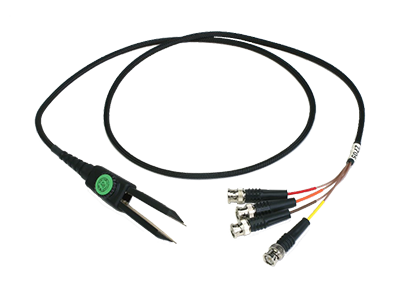

SMD Tweezers, Chip component tweezers for contacting leadless devices. The cable is terminated with BNC connectors.
Kelvin Clips, The 40150 is a price sensitive version of 1EVA40100 Fine Jaw Kelvin Clips for use with 4300 series LCR Meters
Kelvin Clips (large jaw), 600mm extension cable terminated with four BNC connectors at the instrument end and a pair of large jawed Kelvin clips at the component end.

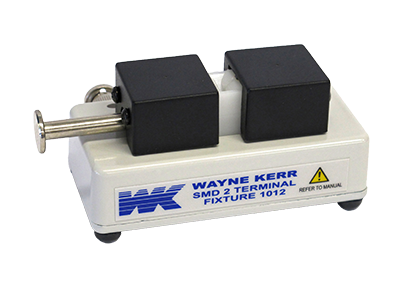

SMD 2 Terminal Fixture, The 1012 fixture makes a 2-terminal measurement to end contact surface mount devices and is suitable for medium and high impedance devices.
SMD 4 Terminal Fixture, The 1014 fixture makes a 4-terminal measurement to end contact surface mount devices and is especially suitable for low impedance devices.

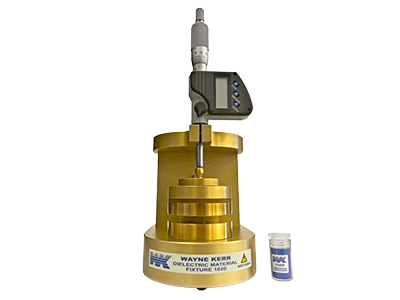

Dielectric Material Fixture, The 1020 Fixture is used with the 6500 series, and when used with the /K Materials Test firmware option allows the permittivity of the Material Under Test (MUT) to be calculated automatically.It allows both the Contacting Electrode and the Non-contacting Electrode Methods to be used up to a maximum frequency of 30 MHz.

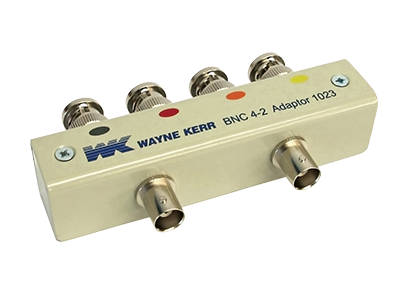

BNC 4-2 Adaptor, The 1023 adaptor allows 2-terminal accessories to be used with 4-terminal analyzers, such as the 4300 and 6500, which do not have a 2 Term/ 4 Term switching facility on their front panel.

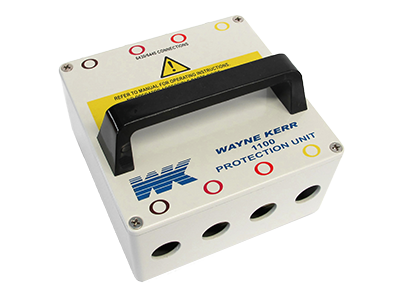

Protection Unit, The 1100 Protection Unit is designed for use with the 6430B or 6440B Component Analyzers and provides protection up to 25 Joules of energy.
SMD 4 Terminal Bottom Contact Fixture, The 10324 fixture makes a 4-terminal measurement to bottom contact surface mount devices and is especially suitable for low impedance devices.
